Power Full, Strong, Efficient.

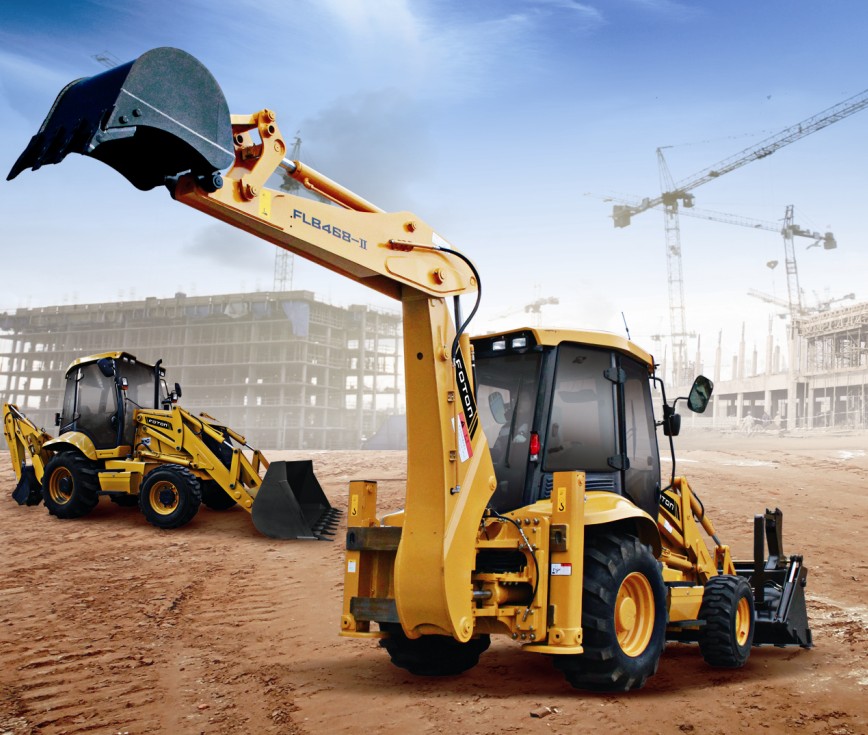

FLB468-II is the Side Shift Backhoe Loader, more enhance work out put, safety, quick, cost effective machine.
a. Energy-Efficient
b.
original CARRARO transmission
c.
plate-fin aluminium radiator
d.
HUSCO hydraulic system from American performs
1. Powerful 1004C-P4T engine offers a high reliability.
2. Equipped with qualified original CARRARO transmission and axles from Italy. They feature synchronized shifting in all gears, and power shuttle between forward and reverse.
3. HUSCO hydraulic system from American performs excellent. EATON full hydraulic load-sensing steering is advanced in technology and capability.
4. 360°view cab with streamlined design offers an excellent visibility. With interior components shaped by injection mold, in-cab noise levers are the lowest in the business for maximum operator comfort.
5. One-piece structure hood with DCPD material enhances the reliability.
6. A/C system is optimized with significantly improved cooling performance.
With perfectly matched power, drivetrain and hydraulic systems, the radiation performance is improved.
7. Water-proof plug connector improves reliability of electrics.
Type of theBackhoe Loader: Side shift | ||
Transport dimensions(mm) |
5900*2320*3500 | |
---|---|---|
Four-Drive |
8460 | |
maximum traction (kN) |
74 | |
Speed |
||
Forward 1/2/3/4 |
5.8/10.0/20.1/36 | |
Backword 1/2/3/4 |
5.6/10.0/20.1/36 | |
Minimum Turning Radius |
||
Outside of the Front Wheel |
3950 | |
Loading Specifications |
||
Rated Bucket Capacity |
1 m3 | |
Maximum Digging Force |
41 | |
Maximum Discharge Height |
2660 | |
Maximum Dumping Reach |
780 | |
Total cycle time |
≤8.8 | |
Digging Specifications |
||
Rated Bucket Capacity |
0.18 | |
Maximum Digging Force |
53.3 | |
Maximum Digging Depth |
4345 | |
Maximum Digging Distance |
5385 | |
Maximum Unloading Height |
3545 | |
Engine |
||
Model |
Weichai Duetz WP4G95E221, | |
Type |
4 cylinder inline,direct injection,water cooled | |
Power kW/rpm |
69/2200(70/2200) | |
Maximum Torque(N·m/r/min |
≥370/1400-1600(392/1400) | |
Bore * stroke |
100*127 | |
