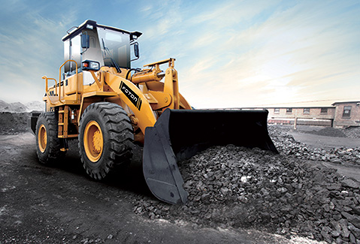

Wheel-loader: FL936 F-II

Power Full, Strong, Efficient.

FL936F-II is the second generation of old 966, more enhance work out put, safety, quick, cost effective machine.

a. Energy-Efficient
b. Hydraulic Shift Transmission
c. plate-fin aluminium radiator
d. improved torsional capacity

Main Features

1. The vehicle uses the excellent  6BT5.9-C130  engine which is reliable engine which is powerful and excellent.

2. The 360°panoramic cab provides an increase of interior space by 10% for maximum visibility. The cab uses the reinforced framework and floor platform to keep drivers safe and comfortable in a productive environment.

3.Using the dual-pump flow-converging system, the hydraulic system is substantially energy-efficient. The fully hydraulic priority load sensing valve provides easy operation.

4.The cooling system is optimized to allow the radiator to be arranged into a two-layer structure for maximum ventilation and meets the environment temperature of 45℃, improving adaptability to high temperature environment
.
5.The engine hood is optimized. Using the full framework structure, its strength increases by 130%. Using the side door structure, it holds a larger interior space, thereby providing easy inspection and service availability.

6.The air-conditioning system is optimized and allows increased refrigeration and heating performance and increases the cab ventilation by 50%. In addition, using the independent heat dissipation technology, the air-conditioning condenser is able to achieve a more excellent refrigeration effect.

7.The hydraulic cylinder system allows the jib lifting force to increase by 20KN by thickening the jib cylinder and its axis pins.

Technical parameters

COMPLETE MACHINE PARAMETERS
Rated load(kg)
3000
Operating mass (standard)(kg)
10270
Bucket capacity(m³)
1.8
Boom lifting time(S)
5.7
Sum of three items(S)
10.5
Max. traction force(kN)
92
Max. breakout force(kN)
120
RUNNING SYSTEM
Forward speed range(km/h)
0-37.5
Backward speed range(km/h)
0-31.5
Gearbox shift
Front :4 gears; rear: 2 gears
Max. gradeability(°)
30
Steering angle(°)
36
Tire model
17.5-25-12PR
Service brake
caliper disc brake
Parking brake
flexible shaft control caliper disc brake
Tire center(mm)
5131
Outside of bucket(mm)
6005
HYDRAULIC SYSTEM
Working system pressure(Mpa)
16
Working system displacement(ml/r)
63
Steering system pressure(Mpa)
14
Steering system displacement(ml/r)
63
Hydraulic oil volume(L)
110
WORKING SCOPE
Outline dimension(mm)
7230×2424×3230
Wheelbase(mm)
2750
Track(mm)
1850
Min. grounding distance (at hinge position)(mm)
375
Max. unloading height(mm)
2990
Unloading distance at max. unloading height(mm)
1100
ENGINE PARAMETERS
Model(Shangchai)
YC6B125-T20 CUMMINS
Type(Shangchai)
Six-cylinder, in-line, direct injection, natural inspiration, water cooling
Rated power(Kw/rpm)(Shangchai)
92/2200
Max. torque / speed(N.m/rpm)(Shangchai)
463/1400-1600
Cylinder bore x stroke(mm)(Shangchai)
Φ108×125
Displacement(L)(Shangchai)
6.871
Fuel consumption rate at rated working condition(g/Kw.h)(Shangchai)
≤140



KEY FEATURES

FL936F-II is the second generation of old 936, more enhance work out put, safety, quick, cost effective machine.
