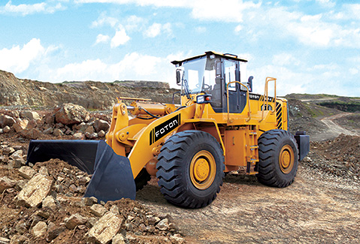

Wheel-loader: FL966 F-II

Power Full, Strong, Efficient.

FL966F-II is the second generation of old 966, more enhance work out put, safety, quick, cost effective machine.

a. Energy-Efficient
b. Electro-Hydraulic Shift Transmission
c. plate-fin aluminium radiator
d. improved torsional capacity

Main Features

1. The vehicle uses the excellent SC11CB240.1G2B1 engine which is reliable, low in noise and low in oil consumption. Alternatively, the WEICHAI WD10G240E21 engine is optional.

2. Using the dual-pump flow-converging system the hydraulic system is substantially energy-efficient. The ZF electro-hydraulic shift transmission provides easy operation. The pilot flow-amplified steering system provides easy and agile steering.

3. The 360°panoramic cab provides an increase of interior space by10% for maximum visibility. The cab uses the reinforced framework and floor platform to keep drivers safe and comfortable in a productive environment.

4. The plate-fin aluminium radiator provides the complete radiator with higher strength and optimized heat dissipation performance. The more excellent heat dissipation effect allows the vehicle to operate normally at 50℃ for a longer time.

5. Using the 4-plate support structure widely applied in Europe, the front frame provides the complete vehicle with improved torsional capacity by 56% to allow the vehicle to work more smoothly, thereby substantially extending the service life of the complete vehicle.

6. Using the independent heat dissipation technology, the condenser enables the air-conditioning system to improve refrigeration and heating performance, thereby increasing the cab ventilation by 50% and keeping the drivers comfortable.

7. The distance sleeve added between the two bearings allows the bearing clearance to be adjusted strictly, increasing the service life of articulation by 50%.

Technical parameters

COMPLETE MACHINE PARAMETERS
Rated load(kg)
6000
Operating mass (standard)(kg)
20000
Bucket capacity(m³)
3.5
Boom lifting time(S)
5.7
Sum of three items(S)
10.5
Max. traction force(kN)
178
Max. breakout force(kN)
200
RUNNING SYSTEM
Forward speed range(km/h)
0-37.5
Backward speed range(km/h)
0-23.5
Gearbox shift
Front :4 gears; rear: 2 gears
Max. gradeability(°)
29
Steering angle(°)
38
Tire model
23.5-25
Service brake
Single circuit, air-over-oil four-wheel caliper disc brake
Parking brake
Drum chamber brake
Tire center(mm)
6030
Outside of bucket(mm)
7040
HYDRAULIC SYSTEM
Working system pressure(Mpa)
18
Working system displacement(ml/r)
112
Steering system pressure(Mpa)
18
Steering system displacement(ml/r)
100
Hydraulic oil volume(L)
250
WORKING SCOPE
Outline dimension(mm)
8540×3070×3460
Wheelbase(mm)
3350
Track(mm)
2250
Min. grounding distance (at hinge position)(mm)
465
Max. unloading height(mm)
3110
Unloading distance at max. unloading height(mm)
1310
ENGINE PARAMETERS
Model(Shangchai)
Shangchai SC11CB240.1G2B1
Type(Shangchai)
upright,four-stroke,water cooling ,supercharging,direct injection
Rated power(Kw/rpm)(Shangchai)
175/2200
Max. torque / speed(N.m/rpm)(Shangchai)
950/1400
Cylinder bore x stroke(mm)(Shangchai)
Φ121×152
Displacement(L)(Shangchai)
10.45
Fuel consumption rate at rated working condition(g/Kw.h)(Shangchai)
≤235



KEY FEATURES

FL966F-II is the second generation of old 966, more enhance work out put, safety, quick, cost effective machine.
